Model MC3051GP/MC800 diffused silicon pressure transmitter
The MC530/510 monocrystalline silicon pressure transmitter is
assembled with a high precision and high stability chip with
imported stainless steel isolation diaphragm.

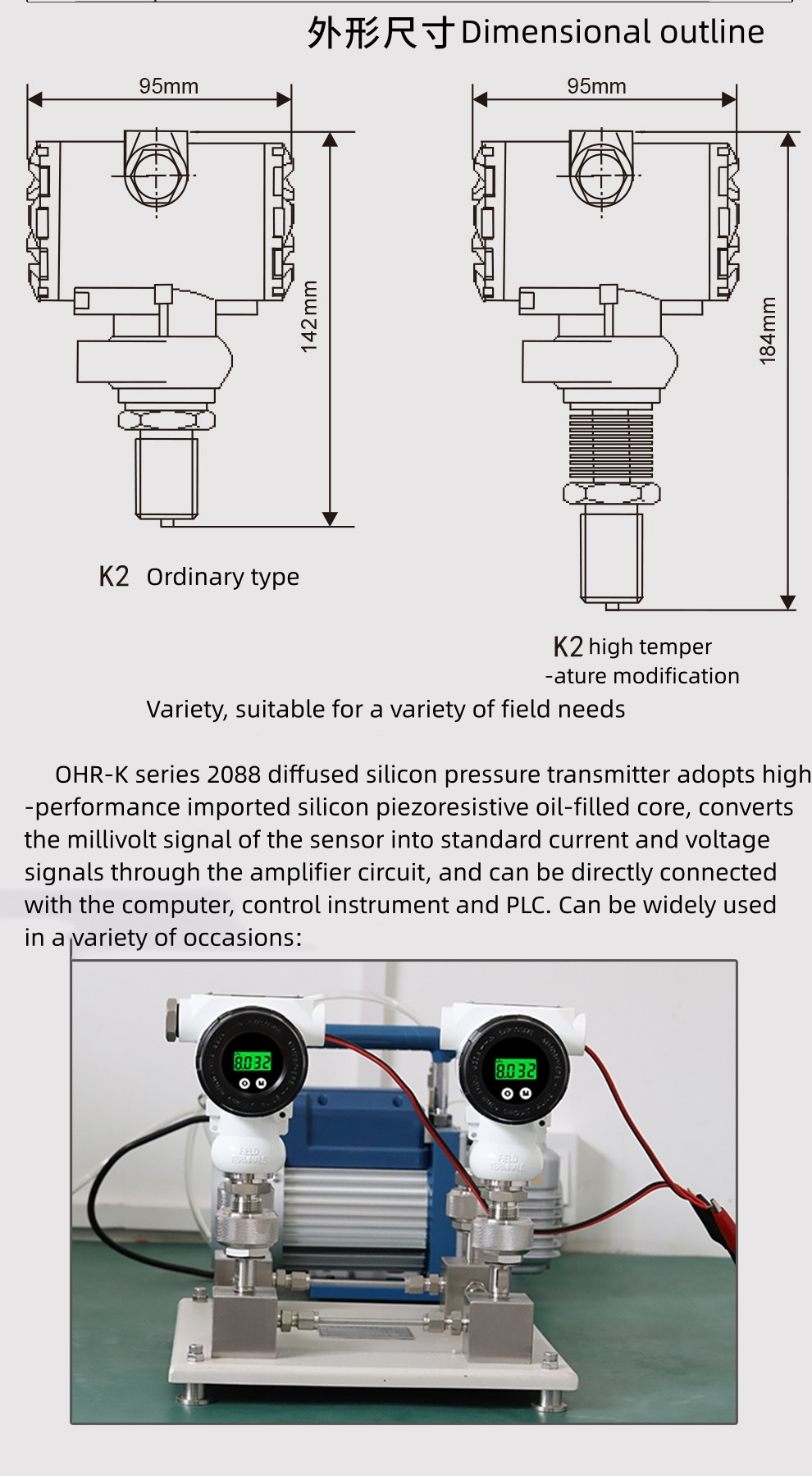

The K series pressure transmitter adopts the international advanced
level of diffused silicon sensor, with high-precision electronic
components, and is assembled by a strict process. Give full play to
the technical advantages of the sensor, so that the series of
pressure transmitters have excellent technical performance. The
transmitter has strong resistance to overload and shock, small
temperature drift, high stability and high measurement accuracy.
Performance parameter
1. Measuring medium: liquid, gas, steam, oil and other media
compatible with 316
2. Measuring range:
Gauge pressure (G) - maximum (0~60)MPa, minimum (0~20)KPa;
Absolute pressure (A) a maximum of (0~40)MPa, minimum of (0~20)KPa;
Negative pressure (B) one (-0.1~40)MPa, minimum (-20)KPa;
3. Accuracy grade: 0.1%F·S 0.25%F·S 0.5%F·S;
4. Long-term stability: less than 0.25%F·S/ year, less than
0.5%F·S/ year;
5. Overload capacity: 2~5 times of the range
6. Working temperature :-40°C~80C; Supplement; Compensation
temperature :-20C~70°C;
7. Power supply voltage :15-36VDC(24VDC);
8. Output signal: (4~20) mA(two-wire system);
9. Display mode: Pointer head or digital display is optional;
10. Calibration: By adjusting the precision potentiometer to
achieve zero and range adjustment;
11. Process connection :M20x1. Outer grain (middle 3 inner hole) or
customized by user
Related function
High precision, good stability
Strong resistance to overload and shock
Strong anti-interference ability
Good temperature stability
Multiple process connection methods
Multiple processes link material
Imported diffused silicon core
Measuring medium: gas universal
Wide range, high cost performance
Pressure type: gauge pressure, negative pressure
18~36V wide voltage supply
IP65 protection rating
304 stainless steel pressure connection
314 diaphragm
Cast aluminum housing
Pressure inducer interface thread M20*1.5
Applicable operating temperature 0~120℃
