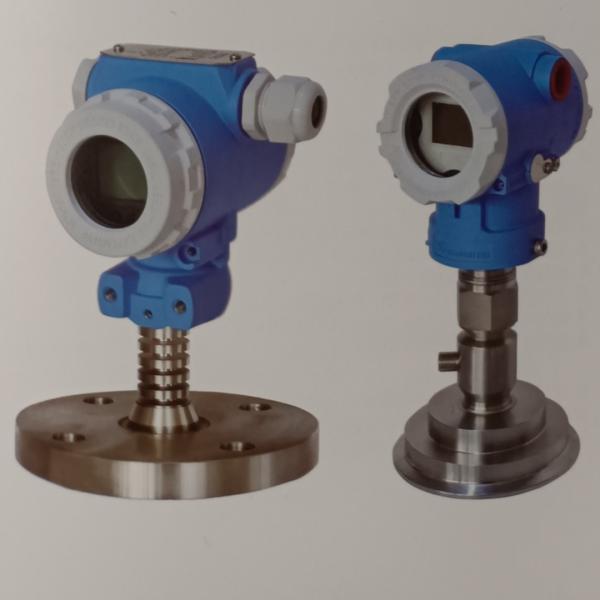

Type MC800/530 flange-mounted pressure transmitter

The MC800/530 flange-mounted pressure transmitter is constructed with a welded sealing diaphragm structure. Its welded sealing diaphragm device has a variety of different process connection structure forms, especially suitable for high temperature, high viscosity, crystalline medium and easy to plug the occasion of pressure measurement, but also suitable for health, medical occasions of pressure measurement.

Technical performance:

1.Clean planar isolation diaphragm, in accordance with the international 3A guard standard,

2.Ceramic capacitive pressure sensor or diffused silicon pressure sensor

3.Measuring range :0-4KPa~35MPa

4.Power Supply :15-36VDC

5.Temperature drift :0.02%FS/°C

6.Accuracy :0.15%

7.Enclosure protection :IP65

8.Electrical connection: Cable type Horsman connector 2088 housing waterproof box optional

10.Temperature:

The electronic circuit board works at -40~85;

The sensitive element is used in -40~104;

Storage temperature -40~85°C;

With digital display -25~65(normal operation);-40~85C(no damage)

11.Relative humidity :0~95%

12.Stability: +0.25% of the maximum range /6 months
