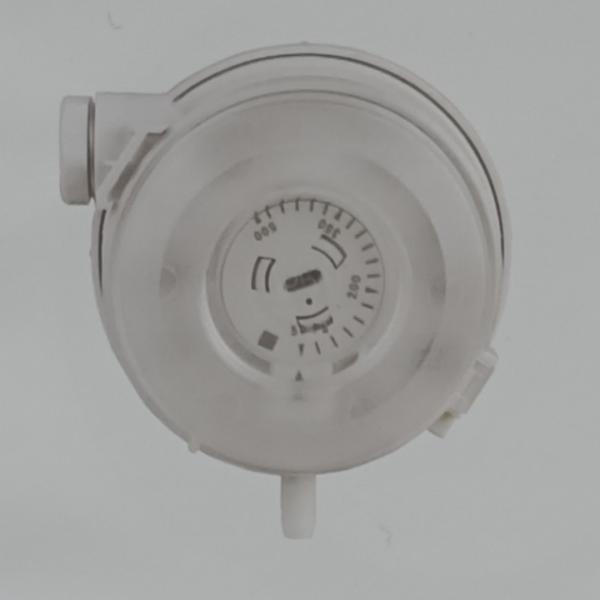

MC930/604 series differential pressure switch

Apply

Dear customers, welcome you to choose our company MC930/604 differential pressure switch series products, your correct selection means that we will serve you correctly, the product is widely used in monitoring gas, non-corrosive media, measuring absolute pressure, gauge pressure and absolute pressure. It is widely used in the following occasions, e.g

Air conditioning and clean room

Intelligent building

Environmental protection

Fan and blow risk control

Filter and blow risk control system

Fluid and level control

Maximum working pressure

All ranges are 10KPa

Temperature range

Medium and ambient temperature from -20 to 85°, storage temperature -40 to 85°C

Medium

Air, non-combustible and non-corrosive gases

Model number

Using a handle with a range scale, the switch pressure of the differential pressure switch is adjusted without the need to be displayed and can also be adjusted with a screwdriver.

The switch pressure should be regulated for vertical installation. We recommend a downward tube connection. If the switch is horizontally mounted with an AMP connector, the switch value may be 20Pa higher than the actual value

Diaphragm material

Silicone, 200°C, other materials can be customized

Auxiliary parts

With three screw connector, pressure connection pipe

Pressure connection

2 plastic pipe connecting holes P1 and P2, outer diameter 6mm;

P1 is connected to high voltage, marked +;

P2 Connects to low voltage, marked with -

Housing material

The switch is PA6.6

Case is PS

Overall dimensions:

Weight

With housing: approx. 150g

Without case :110g

Mechanical service life

More than 1 million switches (exclusive high-performance silver composite process)

Electrical connection

AMP float insert 6.3mmX0.8mm,D1N standard:

46244, or push-button threaded terminals.

Cable PG-11 or M20X1.5

Contact diagram

•——2NO 1 Turn-off shock

3 COM——• 2 Working electric shock

P •——1NC 3 Service line

Electrical rating parameter

Standard model: max.1.0A(0.A)/250VAC

Low voltage model: max.1.0A/24VDC
